Ring Oscillator

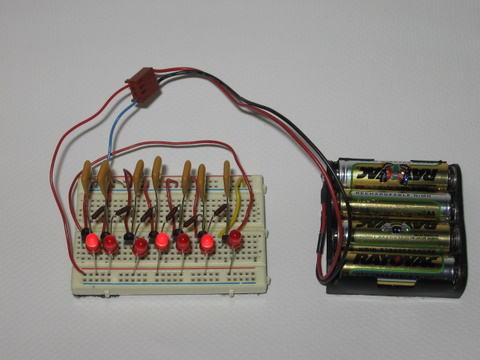

  This Ring Oscillator is made up using 2N7000 mosfet transistors. This example use only seven sections. There is no limit to the number of sections that can be placed in a ring, as long there is a minimum of 3 and the number of sections is a odd number.



Schematic
ring.pdf

Youtube Video
http://www.youtube.com/watch?v=Zzq734N3asU
