Single Digit Nixie Clock


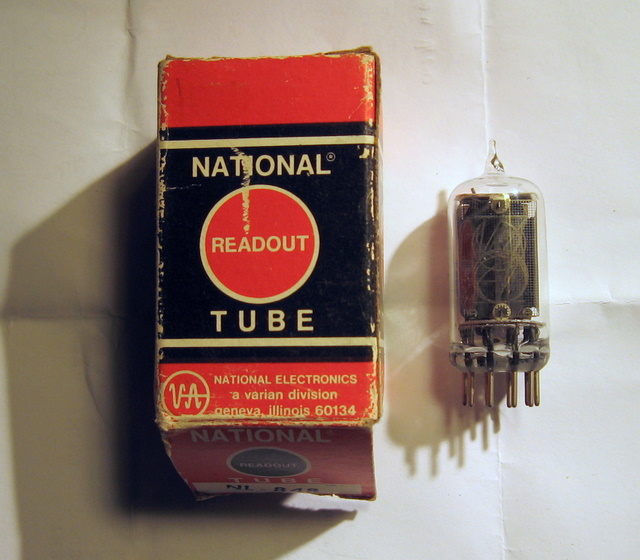

I built a single tube Nixie tube clock based on the circuit found at this site. Time is displayed one digit at a time every 15 seconds.
A PIC 16F84A microcontroller powers the circuit.

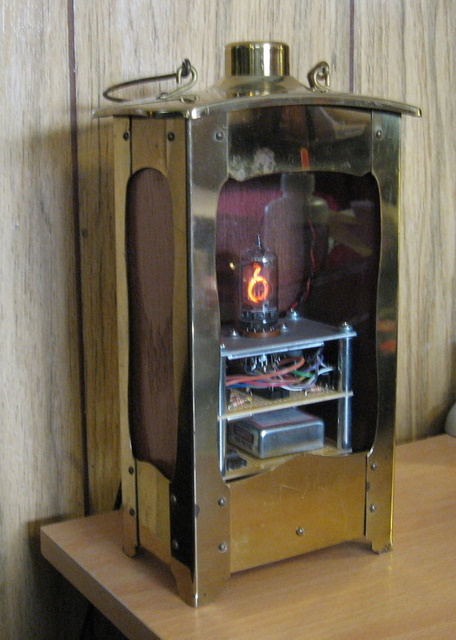

Clock was mounted in a liquor decanter container.  The original bottle was removed.
Wood panels were place on the sides and back.

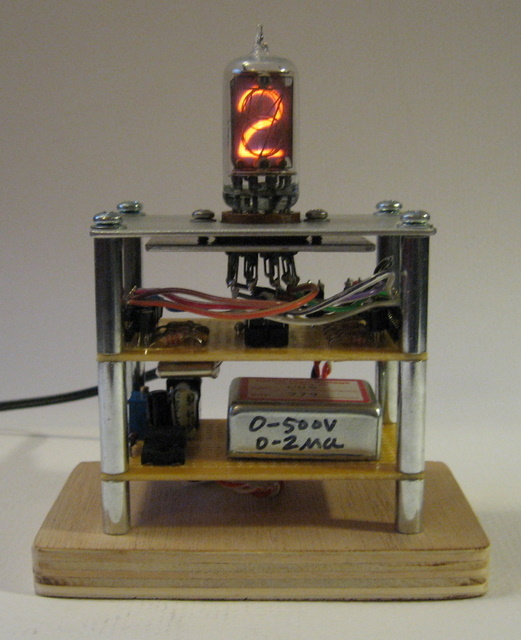

Nixie tube and circuit assembly

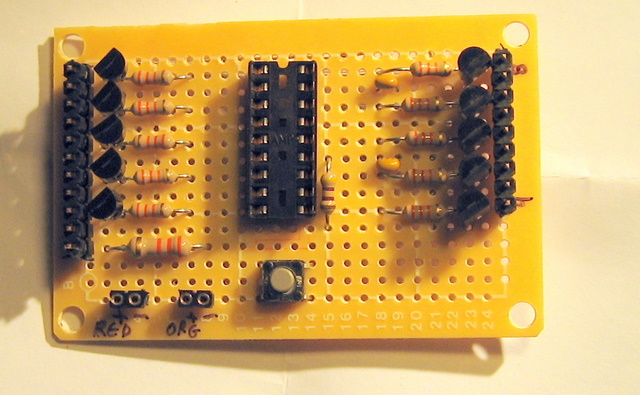

Hand wired circuit boards using teflon tubing and bare wire.

Video of  "Test Mode"

Video of normal operation
